Product Details:
Minimum Order Quantity | 1 Piece |
Country of Origin | Made in India |
Usage/Application | All Construction Painting Electrical Fitting |
Load Capacity | 1000 Kg |
Type Of Mast | Single Mast |
Platform Width | Yes |
Working Height | 275 (m) |
Model Name/Number | JSP-1000 |
Work Surface | Stainless Steel |

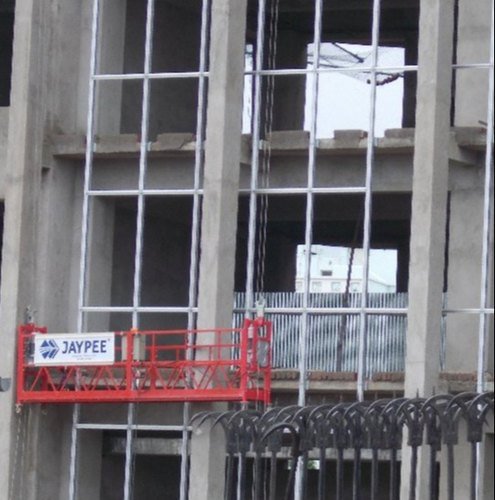

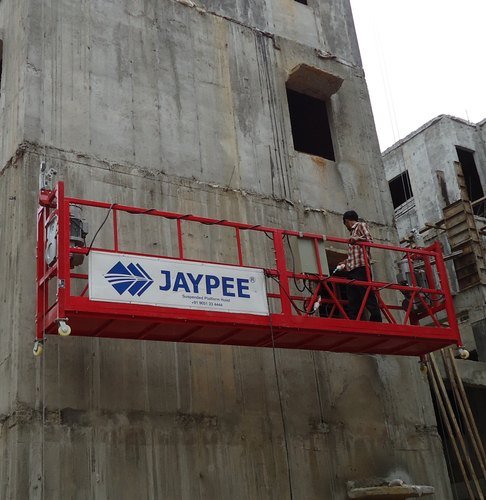

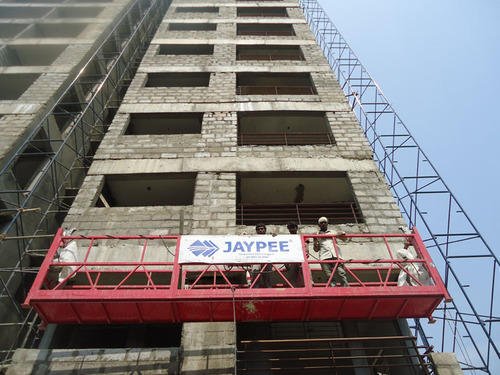

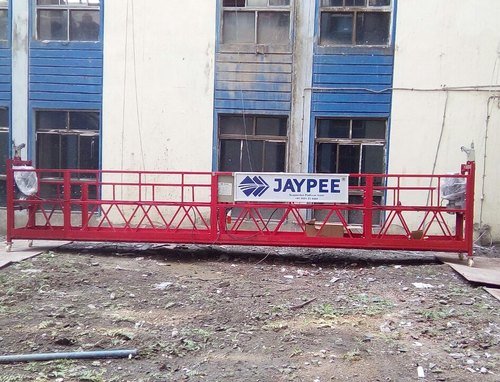

Jaypee now brings to India the most advanced Rope Suspended Platform Hoist. With features like safety lock model, advanced Electrical control system with anti-tilting, rope break, high quality steel wire rope and optional overload sensor. Also referred to as Gondola, these hoists are used for maintenance and decoration of the outer parts of high rise buildings. A Rope Suspended Platform Hoist can also be described as a temporary structure attached to the building for alteration and demolition of the construction.
Gondolas are widely used for repairing work, maintenance of a building, installing the billboards on high rise towers, welding, cleaning and painting for large ships and more. Jaypee India uses high quality materials like stainless steel and aluminium to manufacture these suspended rope platform hoists. A stringent quality check is done to ensure the strength parameters and provide just the very best to the customers.
The suspended rope platform hoist from Jaypee, one of the leading platform hoist exporter, comes with some unique features to support the growing demands of the contractors and engineers. These Rope Suspended Platform Hoists from Jaypee come in three unique models to meet the unique site requirements.
These different models of the equipment vary in size, loading capacity and speed.
Keeping in mind the risk associated with the construction and maintenance of high rise buildings, the expert engineers from Jaypee have installed several safety features in this equipment.
Hence now reduce unplanned leaves caused by accidents and enhance employee satisfaction with innovative Rope Suspended Platform Hoists from Jaypee.
Safety Features:
These Rope Suspended Platform Hoists from Jaypee are also energy efficient, using less energy to operate.
Jaypee is a leading hoist manufacturer, specializing in the manufacturing of frequency conversion hoists and material hoists which are durable and high capacity load bearing equipment.
Product Details:
Country of Origin | Made in India |
Type Of Mast | Single Mast |
Model Name/Number | JSP1000, JSP800, JSP650 |
Installation | Provided |
Material Of Platform | Mild Steel |
Load Capacity | 800 KG |

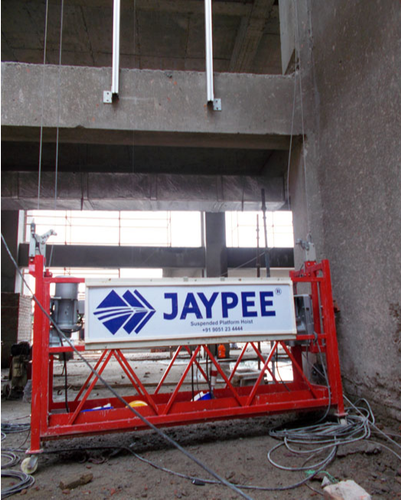

Jaypee now brings to India the most advanced Rope Suspended Platform Hoist. With features like safety lock model, advanced Electrical control system with anti-tilting, rope break, high quality steel wire rope and optional overload sensor. Also referred to as Gondola, these hoists are used for maintenance and decoration of the outer parts of high rise buildings. A Rope Suspended Platform Hoist can also be described as a temporary structure attached to the building for alteration and demolition of the construction.
Gondolas are widely used for repairing work, maintenance of a building, installing the billboards on high rise towers, welding, cleaning and painting for large ships and more. Jaypee India uses high quality materials like stainless steel and aluminium to manufacture these suspended rope platform hoists. A stringent quality check is done to ensure the strength parameters and provide just the very best to the customers.
The suspended rope platform hoist from Jaypee, one of the leading platform hoist exporter, comes with some unique features to support the growing demands of the contractors and engineers. These Rope Suspended Platform Hoists from Jaypee come in three unique models to meet the unique site requirements.
These different models of the equipment vary in size, loading capacity and speed.
Keeping in mind the risk associated with the construction and maintenance of high rise buildings, the expert engineers from Jaypee have installed several safety features in this equipment.
Hence now reduce unplanned leaves caused by accidents and enhance employee satisfaction with innovative Rope Suspended Platform Hoists from Jaypee.
Safety Features:
These Rope Suspended Platform Hoists from Jaypee are also energy efficient, using less energy to operate.
Jaypee is a leading hoist manufacturer, specializing in the manufacturing of frequency conversion hoists and material hoists which are durable and high capacity load bearing equipment.
Product Details:
Country of Origin | Made in India |
Usage/Application | Construction |
Trolley Option | With Trolley |
Product Type | Multi Function Hoist |
Mounting | Suspension |
Brand | Jaypee |
Your information is safe with us.
GetBest Deal

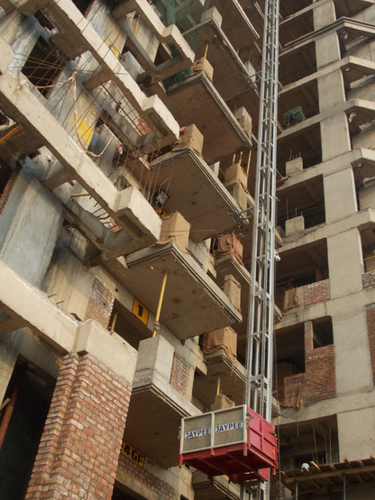

Product Details:
Country of Origin | Made in India |
Usage/Application | Construction Sites |
Chain Length | 140mts |
Trolley Option | Without Trolley |
Type | Multi Function Hoist |
Brand | Jaypee |

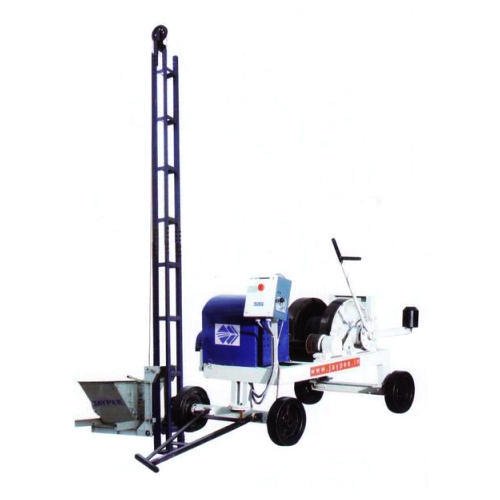

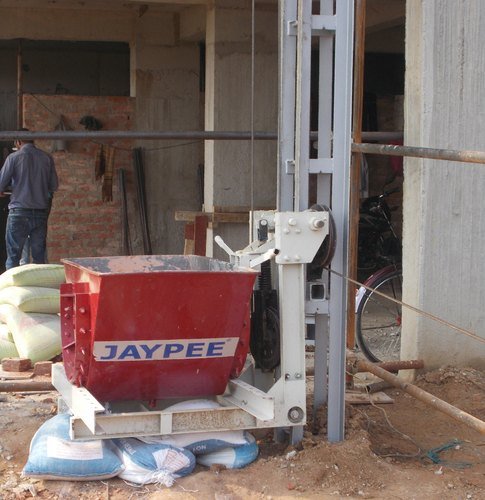

Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.
Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.
Jaypee has successfully erected a 2 ton winch upto a height of 140mts.
Product Details:
Country of Origin | Made in India |
Usage/Application | Construction |
Power Source | Motor 2 x 12.5 HP,2 x 12.5 HP2 x 2 x 12.5 HP |
Product Type | Heavy |
Lift Speed | 96m/min |
Brand | Jaypee |

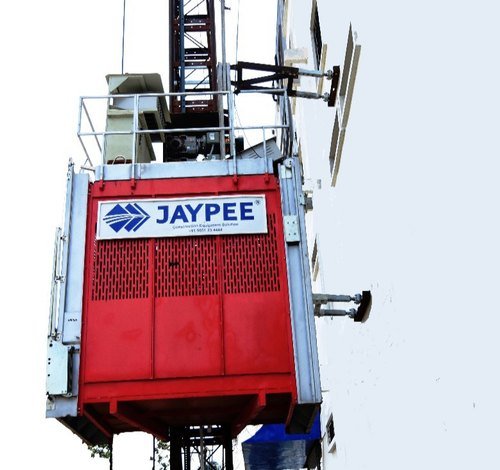

To serve the increasing demand for high-rise construction we offer the high speed VF hoist, with a max. lifting speed of 96m/min. A few salient features of these hoists are:
As a part of Man and Material Handling Solutions, Jaypee brings to your interest a wide range of Passenger and Materials Hoist. Brought to your service is a range which can lift up to 8000kg, with a lifting speed that can reach up to 96m/min and an attainable max. erecting height of 450m. These Productss can be used in various construction sites, power projects, metallurgical, mining, oil and chemical industries.
Our Construction Hoists feature high quality materials and Productss and components from world renowned manufacturers. The Rack and Pinion adopts a specially processed material and heat treatment technique, prolonging the life of these parts. The mast section surface can be finished with paint spray, Parkerizing baking finish or hot galvanizing processing as per user requirements.
Product Details:
Country of Origin | Made in India |
Capacity | 0-1 ton |
Trolley Option | Without Trolley,With Trolley |
Brand | JAYPEE |
Installation Provided | Provided |
Product Type | Construction Hoist |
As a part of Man and Material Handling Solutions, Jaypee brings to your interest a wide range of Passenger and Materials Hoist. Brought to your service is a range which can lift up to 8000kg, with a lifting speed that can reach up to 96m/min and an attainable max. erecting height of 450m. These Productss can be used in various construction sites, power projects, metallurgical, mining, oil and chemical industries.
Our Construction Hoists feature high quality materials and Productss and components from world renowned manufacturers. The Rack and Pinion adopts a specially processed material and heat treatment technique, prolonging the life of these parts. The mast section surface can be finished with paint spray, Parkerizing baking finish or hot galvanizing processing as per user requirements.
To serve the increasing demand for high-rise construction we offer the high speed VF hoist, with a max. lifting speed of 96m/min. A few salient features of these hoists are:
Your information is safe with us.
GetBest Deal
Product Details:
Country of Origin | Made in India |
Chain Length | 10 mm, 6 Core Steel Wire |
Trolley Option | With Trolley |
Capacity | 1 TON |
Product Type | Material Hoist |
Brand | JAYPEE |

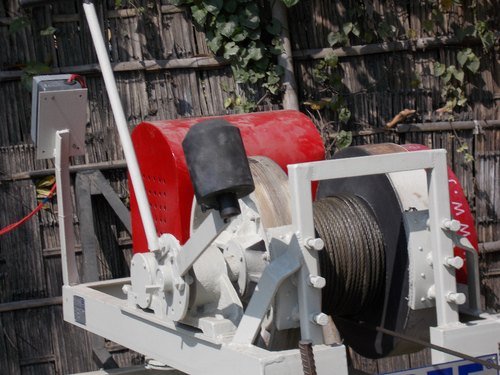

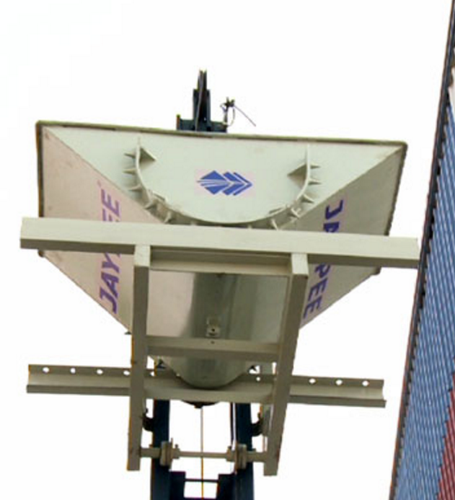

Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.
Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.
Jaypee® has successfully erected a 2 ton winch upto a height of 140mts.
Benefits & Features
Product Details:
Country of Origin | Made in India |
Chain Length | 100 m |
Trolley Option | With Trolley |
Capacity | 1 ton |
Product Type | Material Hoist |
Brand | JAYPEE |
Jaypee Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.
Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.
Jaypee has successfully erected a 2 ton winch upto a height of 140mts.
Product Details:
Mast Section | 650 x 650 x 1508 (Square) mm |
Speed Range | 0-60 M/Min |
Load Capacity | 1000 kg/0-36 M/Min |
Rack Module | 8 |
Motor Power | 2 X 10 HP |
Mast Section Weight | 123 kg |
Your information is safe with us.
GetBest Deal
Product Details:
Load | 1000 kg/0-36 M/Min |
Trolley Option | With Trolley |
Brand | Jaypee |
Speed | 2 X 10 HP |
Rack Module | 8 |
Mast Section Weight with Rack | 123 kg |
Mast Section | 650 x 650 x1508 (Square) |
As a part of Man and Material Handling Solutions, Jaypee brings to your interest a wide range of Passenger and Materials Hoist. Brought to your service is a range which can lift up to 8000kg, with a lifting speed that can reach up to 96m/min and an attainable max. erecting height of 450m. These Productss can be used in various construction sites, power projects, metallurgical, mining, oil and chemical industries.
Our Construction Hoists feature high quality materials and Productss and components from world renowned manufacturers. The Rack and Pinion adopts a specially processed material and heat treatment technique, prolonging the life of these parts. The mast section surface can be finished with paint spray, Parkerizing baking finish or hot galvanizing processing as per user requirements.

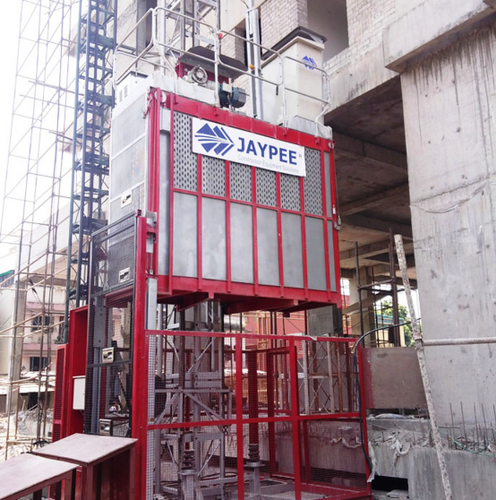

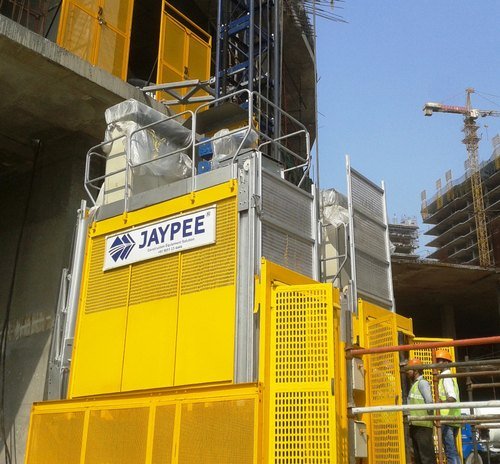

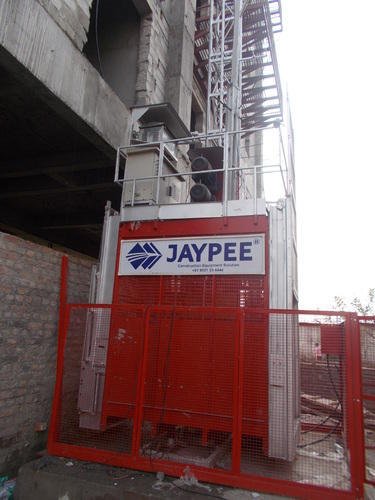

Product Details:
Minimum Order Quantity | 1 Unit |
Height | 450 m |
Capacity | 6-10 ton |
Type | Passenger Hoist |
Brand | Jaypee |
Maximum Lifting | up to 8000 kg |
Speed | 96 M/Min |
Product Details:
Minimum Order Quantity | 1 Unit |
Bucket Volume | 0.3 m3 |
Load Capacity | 750 kg,0-1 ton |
Type | Material Hoist |
Capacity | 1 Ton |
Power | 10 HP Electric Motor |
Brand | JAYPEE |
Working Height | 100 m |
Mast Type | Square Mast |
Your information is safe with us.
GetBest Deal

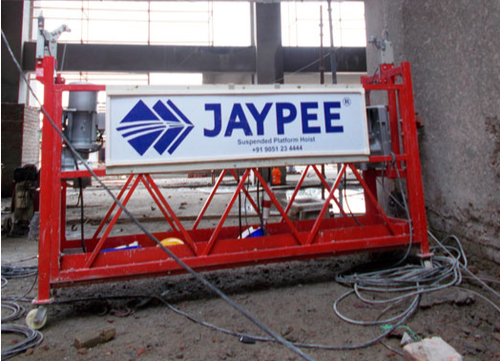

Product Details:
Mounting Type | Suspended Platform |
Usage/Application | Construction |
Power Source | 1.8 kw x 2 |
Product Type | Platform Hoist |
Load Capacity | 800 Kg |
Brand | Jaypee |
Product Details:
Country of Origin | Made in India |
Lift Speed | 0-36 m/min 0-60 m/min 0-36 m/min 0-60 m/min 0-36 m/min 0-60 m/min 0-36 m/min 0-60 m/min 0-36 m/m |
Size/Dimension | (2.4 x 1.2 x 2.1) MTRS, (3 x 1.2 x 2.1) MTRS, ( 3.2 x 1.5 x 2.1) MTRS |
Brand | Jaypee |
Approx. Weight With Chains For 3 M Lift | 78 KG123 KG96KG,151 KG,123 KG,151 KG,123 KG,151 KG |
Motor Power | 2 x 12.5 HP,2 x 12.5 HP,2 x 2 x 12.5 HP, 2 x 2 x 12.5 HP, 3 x 12.5 HP, 2 x 3 x 12.5 HP, 3 x 15 HP |
Product Details:
Bucket Volume | 10 cm3 |
Brand | Jaypee |
Power | 15 HP Electric Motor |
Wire Rope | 12 mm |
Trolley | Heavy Duty MS Channel with guide rollers |
Material | Structural Angle 65 x 65 x 6 mm |
Mast Type | Square Mast |
Chassis size | 1800 X 800 mm |
aypee® Tower Hoist / Builder Hoist is specially designed to lift material to various heights at Construction Sites.
Most of the structure is fabricated in 3m length for easy transportation and assembling at site. With the use of high quality fabrication and anti twisting straightened steel, the mast sections are built for a longer life span.
Jaypee® has successfully erected a 2 ton winch upto a height of 140mts.
Specifications:Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Piece |
Country of Origin | Made in India |
Usage/Application | Construction Hoist |
Capacity | 0-1 ton |
Chain Length | 2-4 (m) |
Product Type | Passenger Hoist |
Maximum Rise | 450m |
Mounting | Suspension |
Brand | JAYPEE |
Type | JCH 100 (Single Cage) | JCH 100/100 (Twin Cage) | JCH 200 (Single Cage) | JCH 200/200 (Twin Cage) | JCH 300 (Single Cage) | JCH 300/300 (Twin Cage) | |||
---|---|---|---|---|---|---|---|---|---|
Load | 1000 kg | 1000 kg | 2 x 1000 Kg | 2 x 1000 Kg | 2000 Kg. | 2 x 2000 Kg. | 3000 KG | 2 X 3000KG | |
Speed | 0-36 m/min 0-60 m/min | 0-36 m/min 0-60 m/min | 0-36 m/min 0-60 m/min | 0-36 m/min 0-60 m/min | 0-36 m/min 0-60 m/min | 0-36 m/min 0-60 m/min | 0 - 60 m/min | 0 - 60 m/min | |
| (2.4 x 1.2 x 2.1) MTRS, (3 x 1.2 x 2.1) MTRS, ( 3.2 x 1.5 x 2.1) MTRS | ||||||||
Motor Power | 2 x 12.5 HP | 2 x 12.5 HP | 2 x 2 x 12.5 HP | 2 x 2 x 12.5 HP | 3 x 12.5 HP | 2 x 3 x 12.5 HP | 3 x 15 HP | 2 x 3 x 15 HP | |
Safety Device | JAS 30-1.2 (M5) | JAS 30-1.2 (M8) | JAS 30-1.2 (M5) | 2xJAS 30-1.2 (M8) | JAS 40-1.2 (M8) | 2xJAS 40-1.2 (M8) | JAS 50-1.2 (M8) | 2xJAS 50-1.2 (M8) | |
Mast Section | 450x450x1508 | 650x650x1508 | 450x450x1508 | 650x650x1508 | 650x650x1508 | 650x650x1508 | 650x650x1508 | 650x650x1508 | |
Weight With Rack Mast Section (approx.) | 78 KG | 123 KG | 96KG | 151 KG | 123 KG | 151 KG | 123 KG | 151 KG | |
Rack Module | 5 | 8 | 5 | 8 | 8 | 8 | 8 | 8 |
Type | Payload (KG) | Lifting Speed (M/Min) | Motor Power (KW) | Adaptable Angle | |
---|---|---|---|---|---|
Curved Construction Hoist | PMHC 60 | 600 | 33 | 1 x 9.3 | 80- + 210 |
0 - 60 (VVVF) | 2 x 9.3 | ||||
PMHC 120 | 1200 | 33 | 2 x 9.3 | 100- + 250 | |
0 - 60 (VVVF) | 2 x 11.0 | ||||
Inclined Passenge Hoist | PMHI 100 / 100 | 2 x 1000 | 33 | 2 x 2 x 9.3 | |
0 - 60 (VVVF) | 2 x 3 x 9.3 | ||||
PMHI 160 / 160 | 2 x 1600 | 33 | 2 x 2 x 9.3 | ||
0 - 60 (VVVF) | 2 x 3 x 11.0 | ||||
PMHI 200 / 200 | 2 x 2000 | 33 | 2 x 3 x 9.3 | ||
0 ~ 60 (VVVF) | 2 x 3 x 11.0 |
Product Details:
Cage Size | 2000 X 1200 X 2000 mm |
Trolley Option | With Trolley |
Load Capacity | 1000 kg (1 Ton) |
Brand | Jaypee |
Motor Power | 12.5 HP (9.3 kW) X 2 |
Lifting Speed | 36 M/min |
Travel Type | Rack & Pinion |
Max Height | 300 Mtr |
Product Details:
Minimum Order Quantity | 1 Piece |
Mast Section | 650 x 650 x 1508 (Square) mm |
Capacity | 10-15 ton |
Load Capacity | 1000 kg/0-36 M/Min |
Type | Passenger Hoist |
Brand | JAYPEE |
Motor Power | 2 X10 HP |
Speed | 0-60 M/Min |
Safety Device | JAS 30-1.2 |
Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Piece |
Platform Dimension | 6000 x 800 x 1480 mm |
Load Capacity | 50-100 kg,1000 kgs |
Platform Width | (LxWxH) 6000 x 800 x 1480 mm |
Power | 1.7 x 2 KW |
Brand | Jaypee |
Weight of Suspension Mechanism | 450 kgs |
Product Details:
Minimum Order Quantity | 1 Unit |
Counter weight | 800 kg |
Load Capacity | 6-10 ton |
Power | 1.5 x 2 KW |
Brand | Jaypee |
Speed | 9.6 M/Min |
Rated Capacity | 800 kgs |
Platform Dimension | 5000 x 690 x 1460 mm |
Note:
Product Details:
Minimum Order Quantity | 1 Unit |
Platform Dimension | 5000 x 690 x 1460 mm |
Capacity | 6-10 ton |
Chain Length | 5000 x 690 x 1460 mm |
Power | 1.5 X 2 Kw |
Brand | Jaypee |
Weight of Suspension Mechanism | 425 kgs |
Speed | 9.6 M/Min. |
Safe Capacity | 650 kgs |
Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Unit |
Mast Type | Square Mast |
Chain Length | 8-10,8-10 (m) |
Power | 10 HP electric motor,10 HP diesel engine |
Bucket Capacity | 15 cm3 |
Chassis | 1550 X 630 mm |
Wire Rope | 10 mm |
Brand | Jaypee |
Trolley | Heavy Duty MS channel with guide rollers |
Product Details:
Minimum Order Quantity | 1 Unit |
Mast Type | Square Mast |
Trolley Option | Heavy Duty MS channel with guide rollers |
Load Capacity | 1-3 ton |
Bucket Capacity | 10 cm3 |
Motor Power | 10 HP electric motor,10 HP diesel engine |
Wire Rope Length | 12 mm |
Power Rating | 10 H |
Product Details:
Minimum Order Quantity | 1 Piece |
Travel Type | Rack & Pinion |
Brand | Jaypee |
Height | 300 mtr |
Lift Speed | 36 M/Min |
Speed | 0-60 M/Min |
Capacity | 1000 kg |
Your information is safe with us.
GetBest Deal
Product Details:
Cage Size | 900 X 800 X 600 mm |
Load Capacity | 1-3 ton |
Brand | Jaypee |
Model No | MFH 100 |
Max Lifting Height | 70 Meters |
Lifting Speed | 30 Meters / Min |
Product Details:
Country of Origin | Made in India |
Usage/Application | Regular |
Brand | JAYPEE |
Model Name/Number | JSP-1000 |
Trolley Option | Without Trolley |
Capacity | 1000 Kg |
Product Details:
Minimum Order Quantity | 1 Unit |
Safe Capacity | 800 kg. 900 kg |
Usage/Application | Construction |
Capacity | 6-10 ton |
Chain Length | 4-6 m,4-6 |
Power | 1.8 X 2 Kw 2.2 X 2 Kw |
Power Source | Electric |
Brand | Jaypee |
Country of Origin | Made in India |
Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Unit |
Mast Section | 650 x 650 x 1508 mm |
Capacity | 5-10 ton |
Brand | Jaypee |
Rack Module | 5, 8 |
Motor Power | 2 X 15 HP |
Mast Section Weight with Rack | 125 kg |
Product Details:
Minimum Order Quantity | 1 Piece |
Country of Origin | Made in India |
Usage/Application | Construction |
Capacity | 0-1 ton |
Trolley Option | with With sliding door |
Mounting | Suspension |
Power Source | 6 hp Kirloskar TAFI engine, 5 H.P.Electric Motor |
Product Type | Rope Suspended |
Load Capacity | 800 Kg |

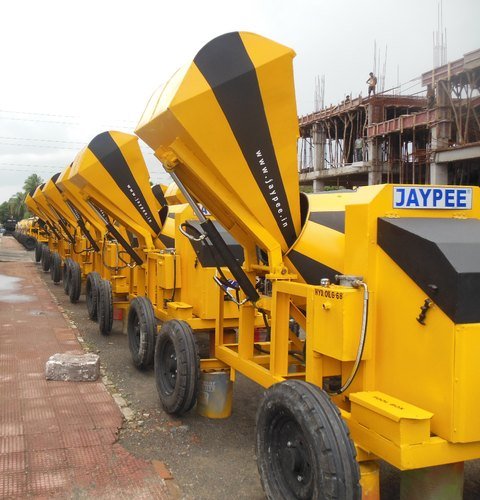

Jaypee® 10/7 Capacity Concrete Mixer is renowned for its robust build, rigidity and long life. Adhering to IS 1791:1968 the mixer provides an uniform mix for a reliable operation.
A concrete mixer is popularly known as a cement mixer. The concrete mixers from Jaypee are used to mix cement, aggregates like sand, gravel and water to form quality concrete and form a strong base for buildings.
These concrete mixers from Jaypee are the essential batching machines used in the construction industry.
Technical Specifications:You get custom designed concrete mixer from Jaypee, a leading concrete equipment manufacturing unit of India.
While this construction equipment is capable of preparing large amount of quality concrete at a single point of time, you can also get small concrete mixers from this leading construction machine exporter; saving your time and hard earned money.
Types of Concrete Mixer:The concrete mixer from Jaypee, a leading concrete mixer manufacturer comes with several additional safety features. These concrete mixers are innovative to meet the dynamic requirements of any leading construction company in India.
You can get these advanced concrete mixers from Jaypee delivered at a short turnaround time.
All the ingredients like cement, sand, water, metal etc are measured and mixed as per the batch. These machines are widely used owing to its high tensile strength and durable nature. They are manufactured from high quality raw materials and have huge demand in both the national and international markets.
Jaypee India is engaged in manufacturing and supplying quality-tested concrete mixers as per customer specifications.
Product Details:
Minimum Order Quantity | 1 Piece |
Rated Capacity | 800 Kg |
Height Of Lift | >10 |
Brand | Jaypee |
Power | 11 HP electric motor,11 HP diesel engine |
Speed | 9.6 M/Min |
Weight of Suspension Mechanism | 420 kg |
Safe Capacity | 700 kg |
Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Piece |

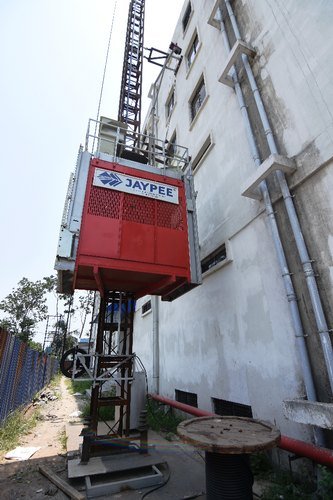

Mast Section | 650 x 680 x 1508 (Square) |
Trolley Option | With Trolley |
Load Capacity | 1000 kg/0-35 M/Min |
Brand | JAYPEE |
Motor Power | 2 X 10 HP |
Speed | 0-65 M/Min |
Specifications:
Product Details:
Minimum Order Quantity | 1 Unit |
Type of Elevators | Passenger Elevators |
Maximum Load | 1 ton |
Maximum speed | 1-2 |
AMC/After Sales Service | Provided |
Installation Provided | Yes |
Cabin finish | Customized |
Warranty | 12 Months |
Drive Type | Customized |
Specifications:
Product Details:
Minimum Order Quantity | 1 Unit |
Mast Section | 650 x 650 x 1608 (Square) mm |
Brand | Jaypee |
Load | 1000 kg/0-36 M/Min |
Motor Power | 2 X 11 HP |
Rack Module | 9 |
Mast Section Weight with Rack | 124 kg |
Specifications:
Your information is safe with us.
GetBest Deal
Product Details:
Minimum Order Quantity | 1 Unit |
Load | 1000 kg/0-36 M/Min |
Brand | Jaypee |
Speed | 0-60 M/Min |
Safety Device | JAS 30-1.2 |
Rack Module | 8 |
Motor Power | 2 x 10 HP |
Mast Section Weight | 123 kg with rack |
Mast Section | 650 x 650 x1508 (Square) |
Product Details:
Country of Origin | Made in India |
Load Capacity | 800-900 kg |
Automation Grade | Manual or remote |
Voltage | 220-440V, 50-60Hz,3phase |
Model Name/Number | JSP-1000, JSP-1000(S) |
Brand | JAYPEE |
Jaypee now brings to India the most advanced Rope Suspended Platform Hoist. With features like safety lock model, advanced Electrical control system with anti-tilting, rope break, high quality steel wire rope and optional overload sensor. Also referred to as Gondola, these hoists are used for maintenance and decoration of the outer parts of high rise buildings. A Rope Suspended Platform Hoist can also be described as a temporary structure attached to the building for alteration and demolition of the construction.
Gondolas are widely used for repairing work, maintenance of a building, installing the billboards on high rise towers, welding, cleaning and painting for large ships and more. Jaypee India uses high quality materials like stainless steel and aluminium to manufacture these suspended rope platform hoists. A stringent quality check is done to ensure the strength parameters and provide just the very best to the customers.
The suspended rope platform hoist from Jaypee, one of the leading platform hoist exporter, comes with some unique features to support the growing demands of the contractors and engineers. These Rope Suspended Platform Hoists from Jaypee come in three unique models to meet the unique site requirements.
These different models of the equipment vary in size, loading capacity and speed.
Product Details:
Minimum Order Quantity | 1 Piece |
Max Capacity | 1-2 ton |
Capacity | 1-2 ton |
Material | Stainless Steel |
Power | 2 x 12.5 HP |
Maximum Speed | 0-36 m/min 0-60 m/min |
Country of Origin | Made in India |
Model Name/Number | JCH 100, JCH 200 |
No Of Person | 2 |
